Introduction for Quick guide with ISP debug information

How to Build Wifi / SD Card Example Code

  • Command

    • cmake .. -G”Unix Makefiles”-DCMAKE_TOOLCHAIN_FILE=../toolchain_ci.cmake -DVIDEO_EXAMPLE=ON

    • cmake –build . –target flash -j 4

  • Entry point

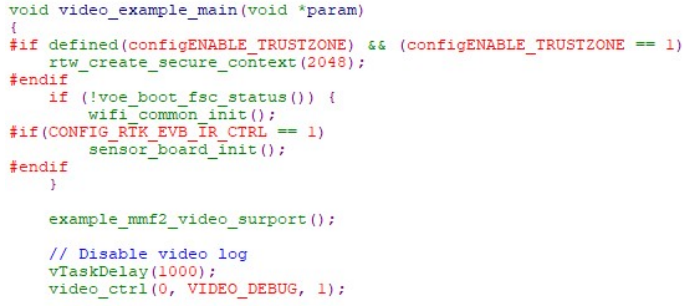

    • Refer to project\realtek_amebapro2_v0_example\src\mmfv2_video_example\video_example_media_framework.c

    • example_mmf2_video_surport()

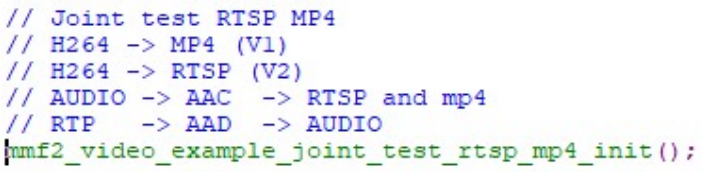

  • Video example selection

    • Through Wifi


  • Through Wifi & SD card recording


  • Can choose only one of video example

Connect to Device through Wifi

  • Connect by PC

    • Desktop: should use Ethernet connected to same AP router

    • Laptop: should use Wifi connected to same AP router

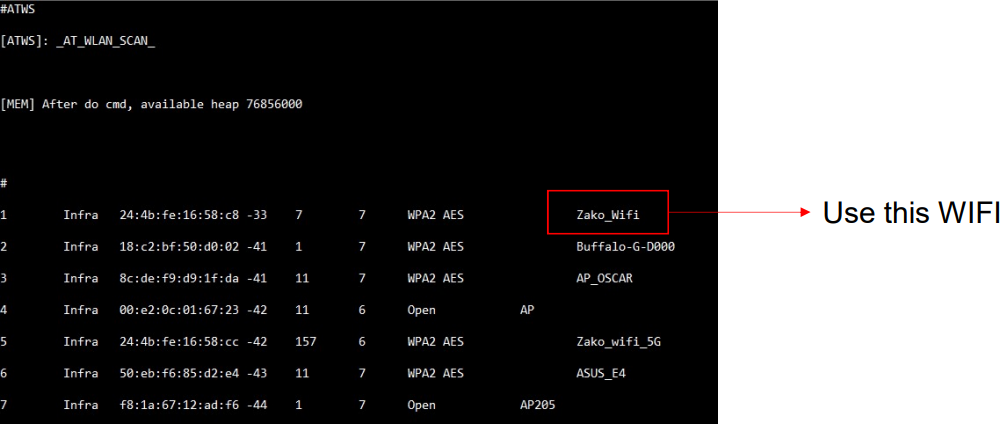

  • ATWS (WIFI scan)

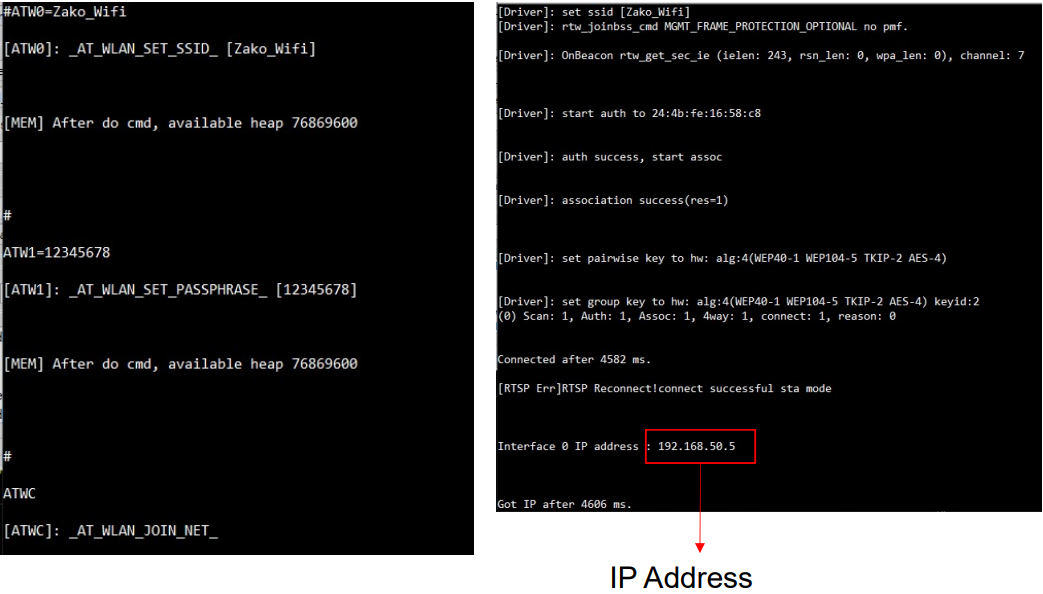

  • Set Wifi SSID

    • ATW0=Zako_Wifi

  • Set Wifi Password

    • ATW1=12345678

  • Connection

    • ATWC

  • Dis-connection

    • ATWD

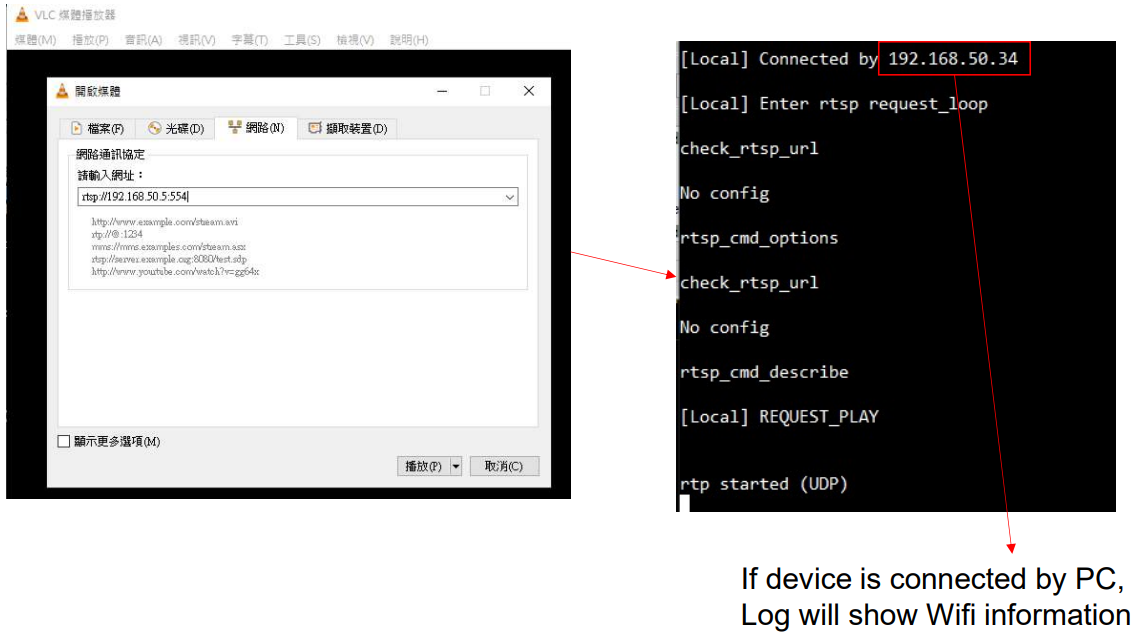

  • Through VLC Player


Debug information

  • Enable VOE log


  • Enable AT command

    • Refer to project\realtek_amebapro2_v0_example\inc\ platform_opts.h


  • Enable CONFIG_ISP

  • Command

    • Refer to component\at_cmd\atcmd_isp.c

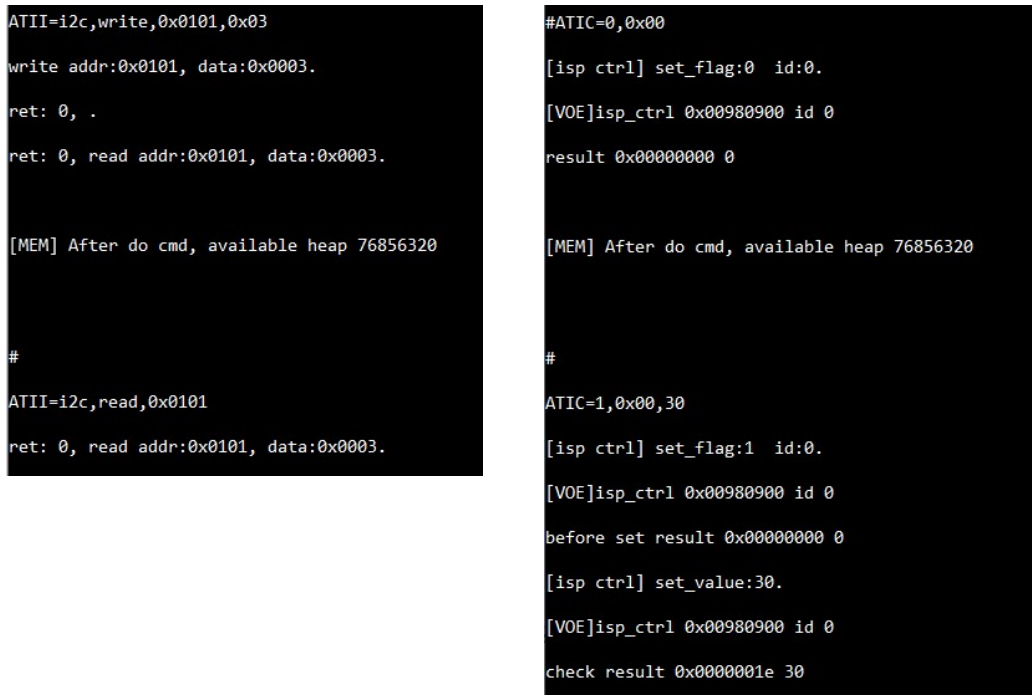

  • I2C

  • ATII=i2c,read,addr

  • ATII=i2c,write,addr,value

  • ISP Control

  • ATIC=0,V4l2

  • ATIC=1,V4l2,value

  • Memory access

  • ATIX=read32,addr,length

  • ATIX=writw,addr,length,value

  • FPS

  • ATII=fps,show

  • ATII=fps,hide

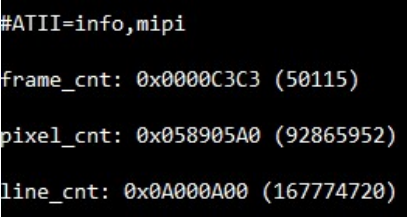

  • MIPI RX information

    • ATII=info,mipi


Date

Version

A uthor

Release note

2024.09.02

1.0

Zako Wu

Draft version for customer release
