[AmebaPro2] Introduction for AmebaPro2 Flow

AmebaPro2 architecture for sensor flow

AmebaPro2 support 2 way for sensor bringing up flow

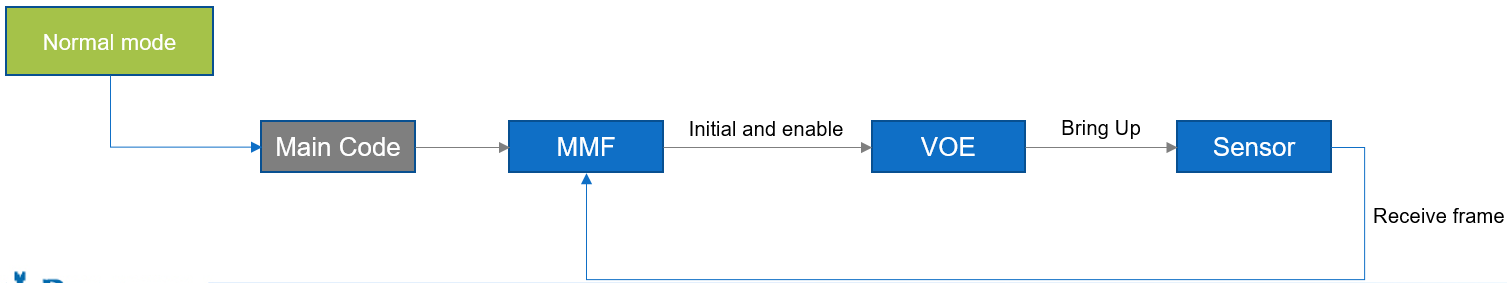

• Fast camera start flow support to get 1^st video frame as soon as possible

• Normal camera flow is used as usually for general usage.

Sensor Configuration on AmebaPro2

AmebaPro2 uses a set concept for sensor & IQ control

Note

Normal camera driver & IQ is voe based

• Version should be alignment.

Sensor configuration file in AmebaPro2 is listed as below

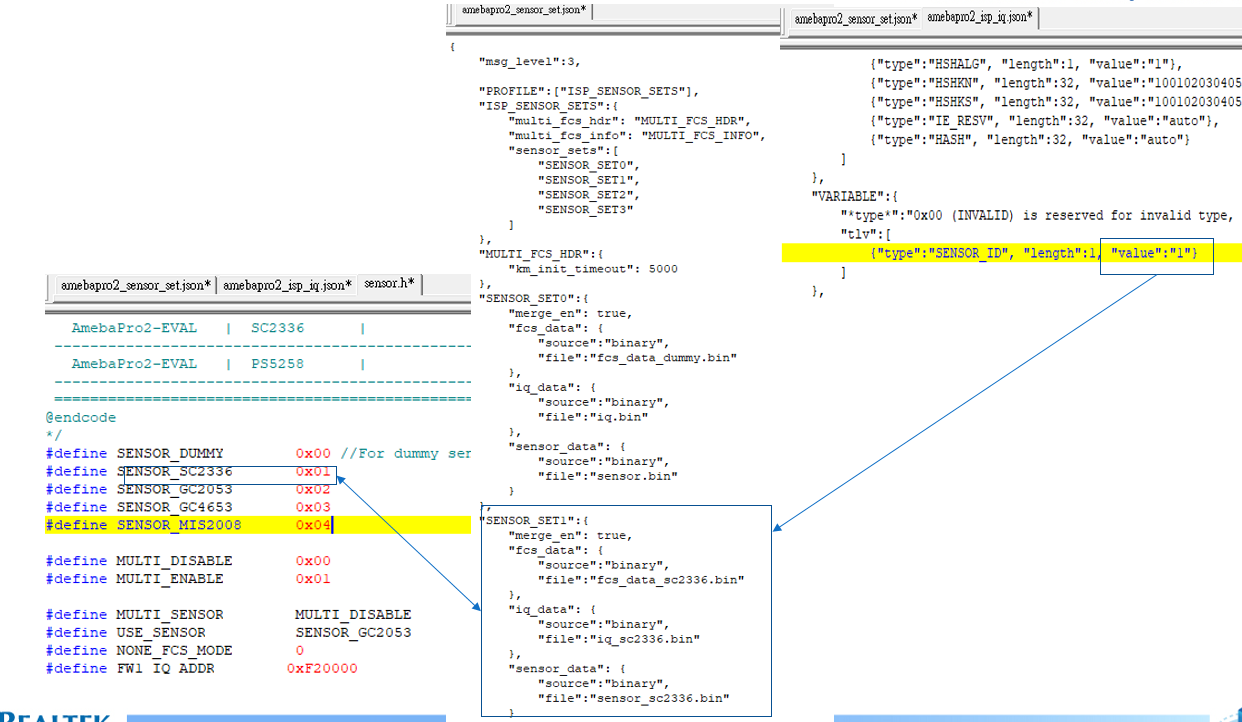

• project\realtek_amebapro2_v0_example\GCC-RELEASE\mp\amebapro2_sensor_set.json

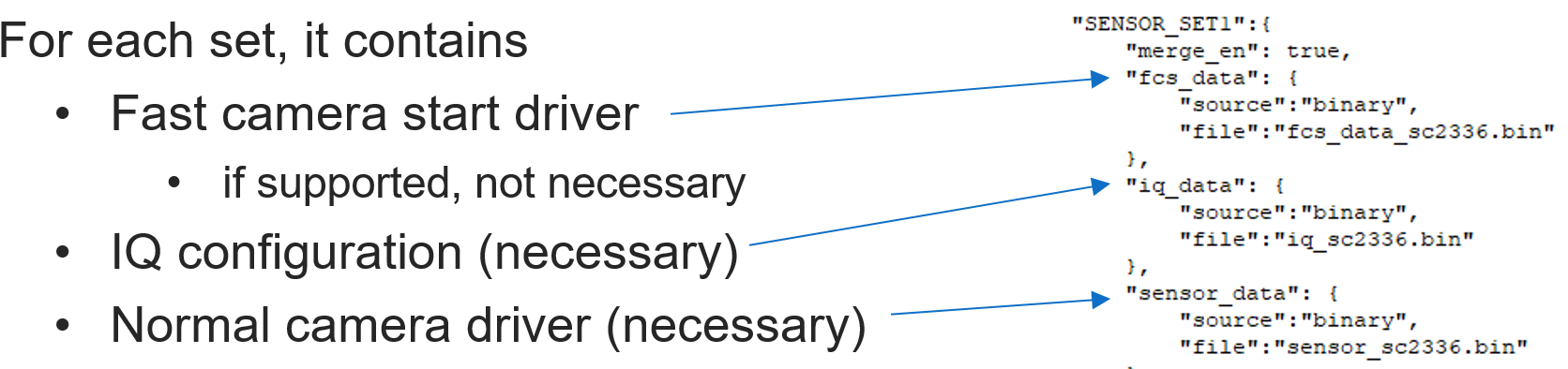

  • Configuration for each driver set

• project\realtek_amebapro2_v0_example\GCC-RELEASE\mp\amebapro2_isp_iq.json

  • User can define which set index for FCS flow

• project\realtek_amebapro2_v0_example\inc\sensor.h

  • Configuration for sensor control

• amebapro2_sensor_set.json

  • User can define how many driver set

    • It support at most 9 set with 1 dummy set

    • Dummy set (set 0) can’t be removed

• sensor.h

  • Configuration for sensor control

  • User can choose which index for driver set

• amebapro2_isp_iq.json

  • User could config FCS index (in necessary)

Path for driver related bin

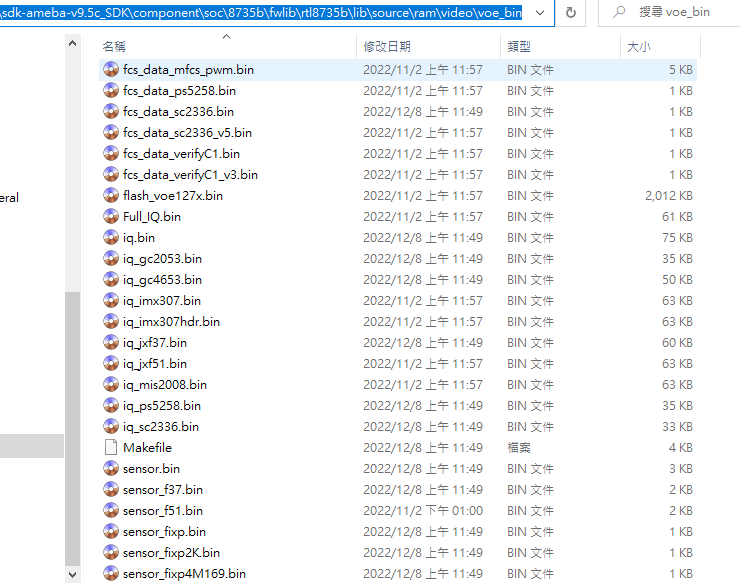

• component\soc\8735b\fwlib\rtl8735b\lib\source\ram\video\voe_bin

Build Code flow

• When user need to update file, it need to be put it in voe_bin

• Batch file would automatic copy file to link folder (during make stage)

  • project\realtek_amebapro2_v0_example\GCC-RELEASE\build\application

Version check

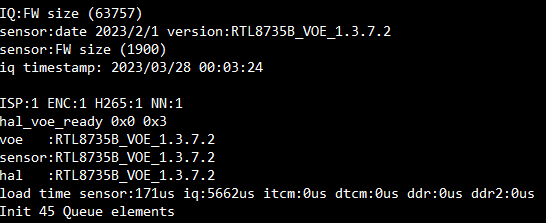

• When load sensor & iq, we would show date & timestamp for each bin

Version check

• When load sensor & iq, we would show date & timestamp for each bin

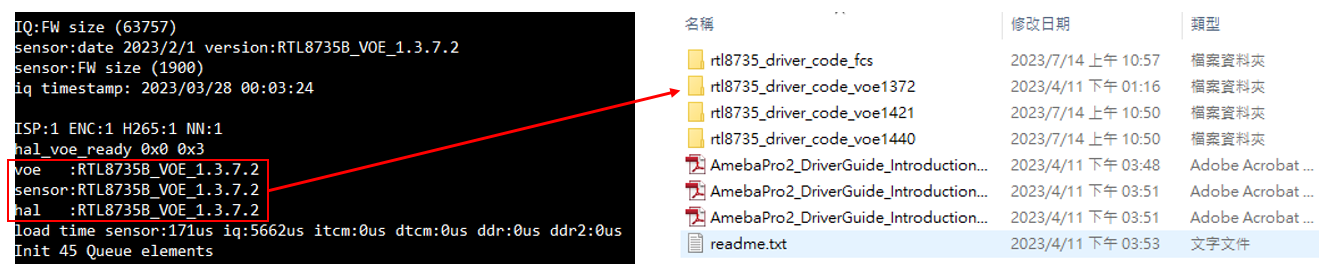

• Based on voe version in SDK, choose corresponding voe code base

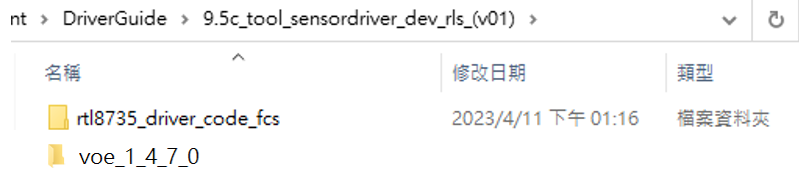

Driver Code base

Code base for normal driver

• voe1470

Code base for FCS driver

• rtl8735_driver_code_fcs

IQ Bin

• Please refer to IQ tuning guide

[Normal Driver] flow for adding sensor

Prepare for sensor driver bin

• Based on VOE code base (version alignment)

Add a new sensor driver (if necessary)

• Refer to 「AmebaPro2_DriverGuide_IntroductionForPortingSensorDriver.pdf」

• Output sensor driver bin

• Copy sensor driver bin to sdk folder

• Add new folder for new sensor driver

  • Take sc2333 for example

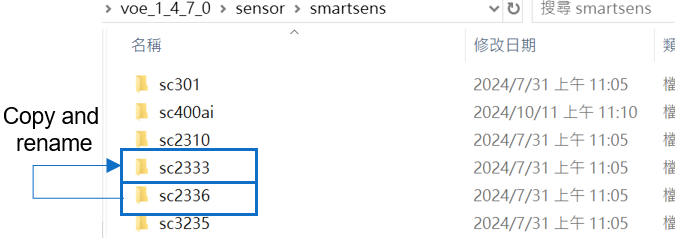

  • Copy from same vendor sensor or same segment sensor

  • Folder Path: sensor\smartsens\sc2333\

  • File Path: sensor\smartsens\sc2333\sensor_sc2336_mipi.c

  • Open sensor driver, and replace the sensor name (sc2336 -> sc2333)

• Modify configuration for VOE code base

  • Check for new page for detail

    • \sensor\Makefile

• Compile and check output bin

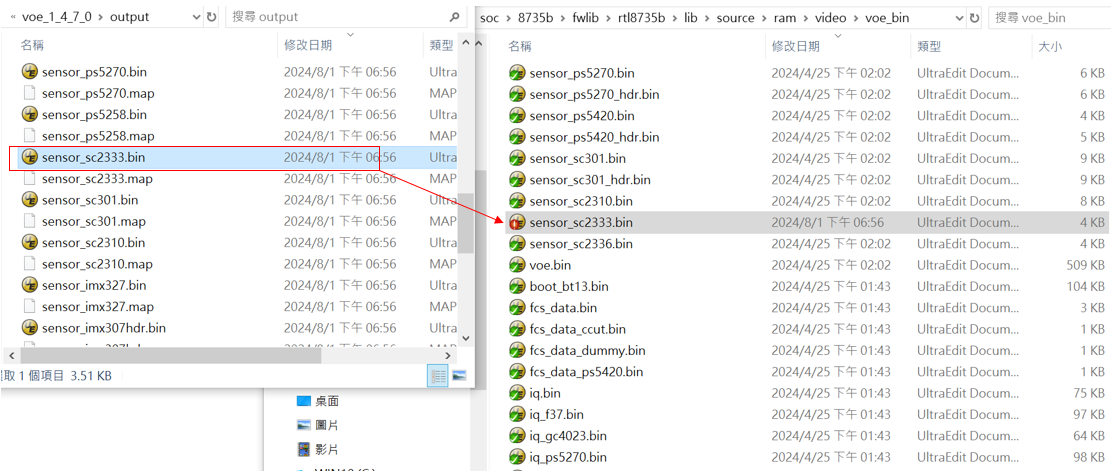

  • Output folder: output\sc2333.bin

• Modify configuration for VOE code base

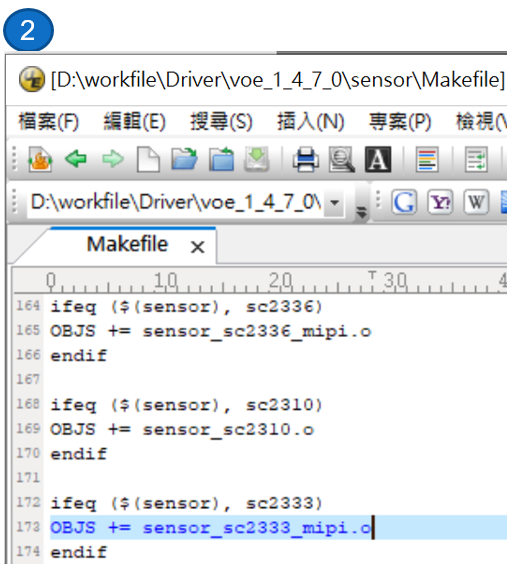

  • \sensor\Makefile

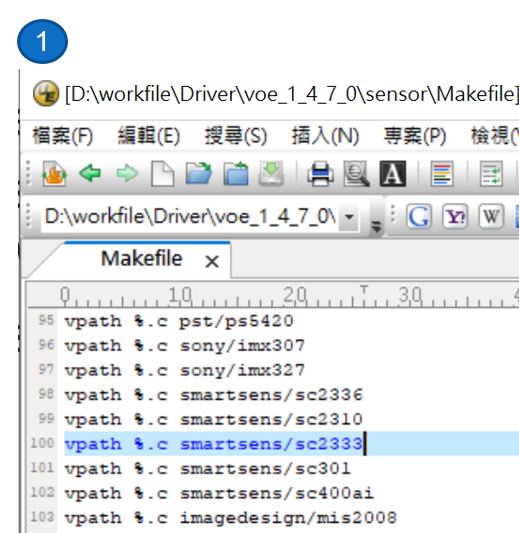

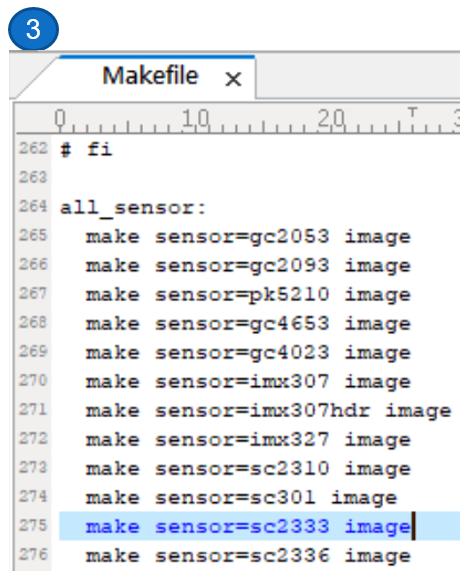

    1. Add folder path

    2. Add sensor driver file name

    3. Add sensor to build

[FCS Driver] flow for adding sensor

Driver Code

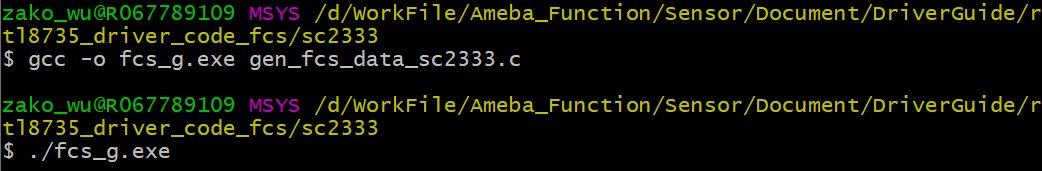

• Use following command to output FCS driver

• gcc -o fcs_g.exe gen_fcs_data.c

• ./fcs_g.exe

• Get fcs driver bin

Date	Version	Author	Release note
2023 .04.11	1.0	Zako Wu	Draft version for customer release
2023 .07.14	1.1	Zako Wu	Add description for voe code based selection #P7 Modify updating sensor driver flow ( with voe.bin) #P9
2024 .10.14	1.2	Kevin Chuang	Update Normal Driver porting flow #P8~#P11
