Load by UART

Amebapro 2 allow to load code by UART port which are dedicated as GPIOF_3 and GPIOF_4.

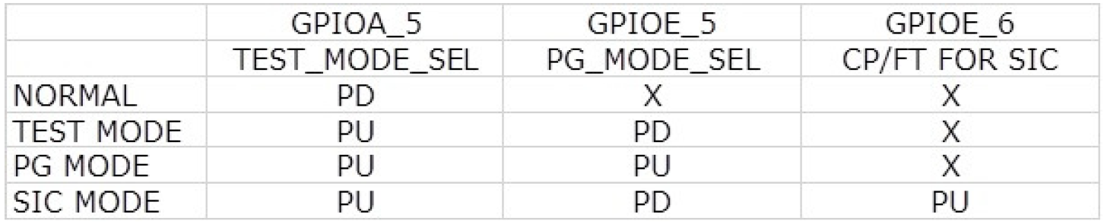

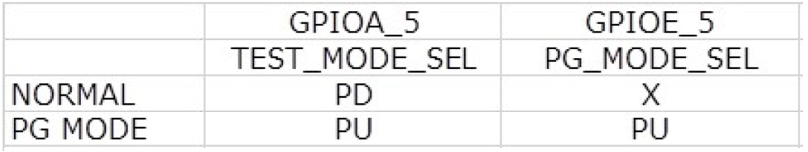

Below is the boot strap setting.

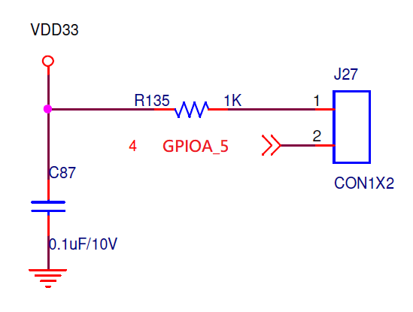

Suggest pull high GPIOA_5 via 1k ohms to enter load code mode

../_images/02_Load_by_UART1.png ../_images/02_Load_by_UART2.png ../_images/02_Load_by_UART3.png
